[Translate to English:] Reinigungskammer

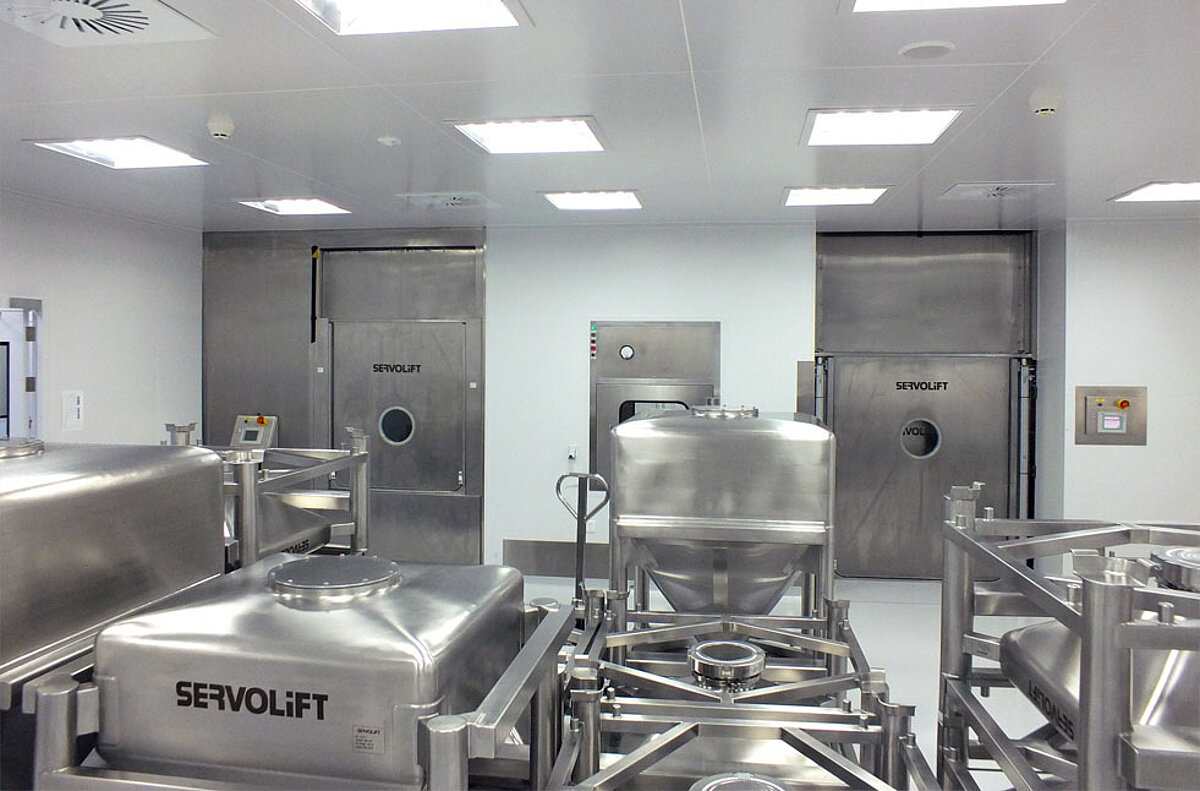

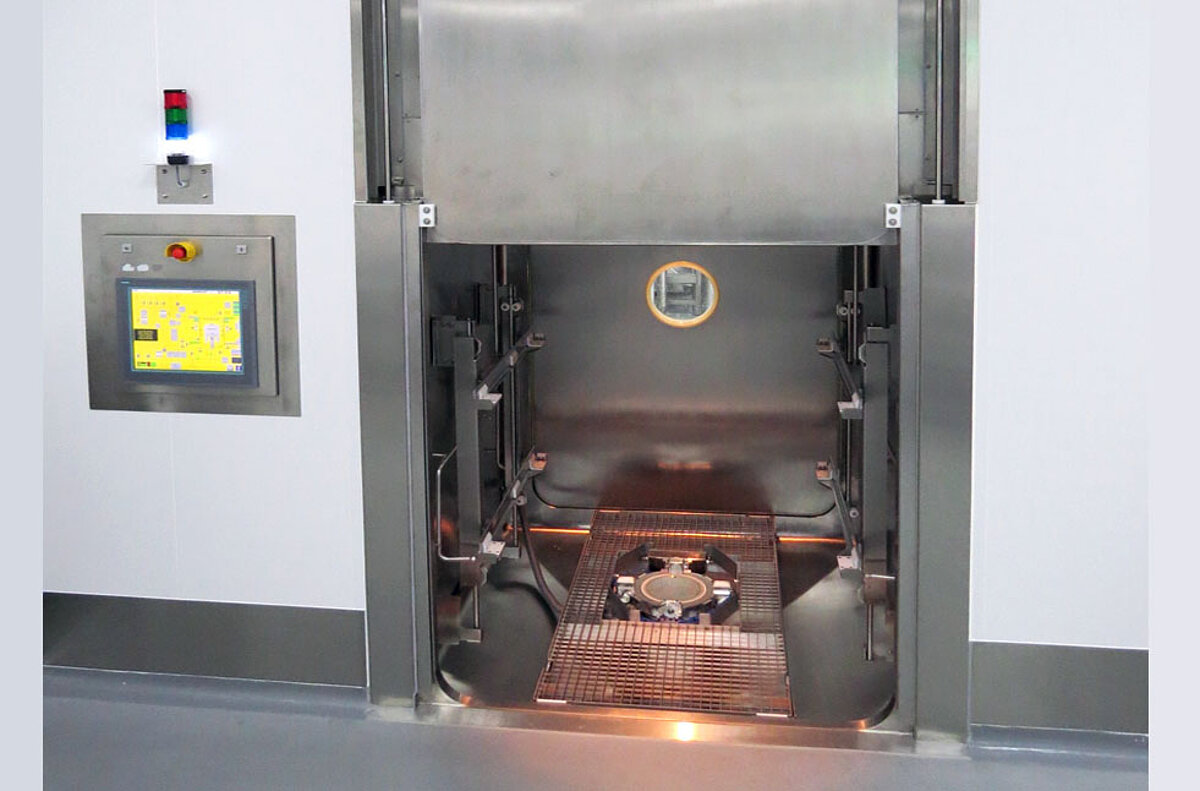

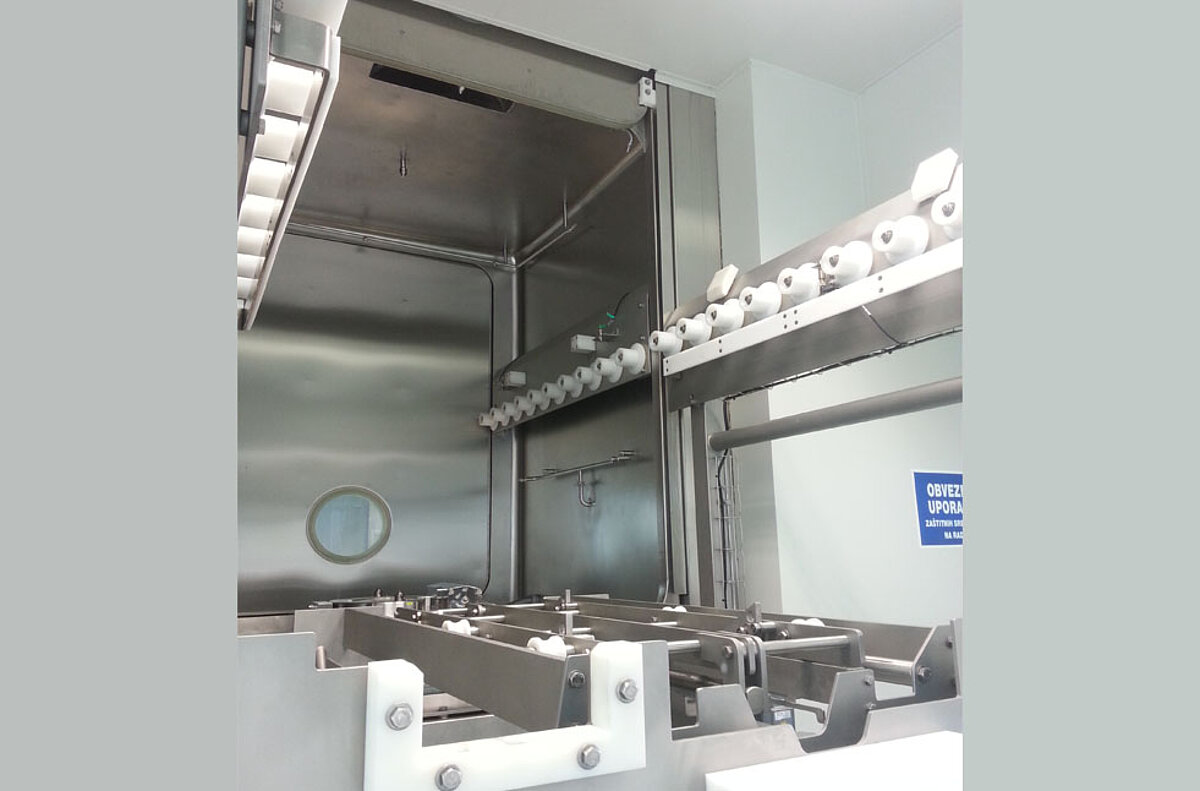

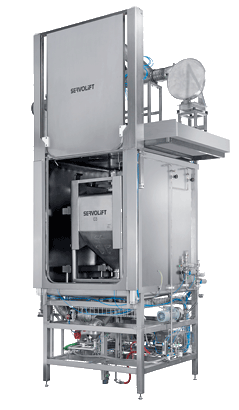

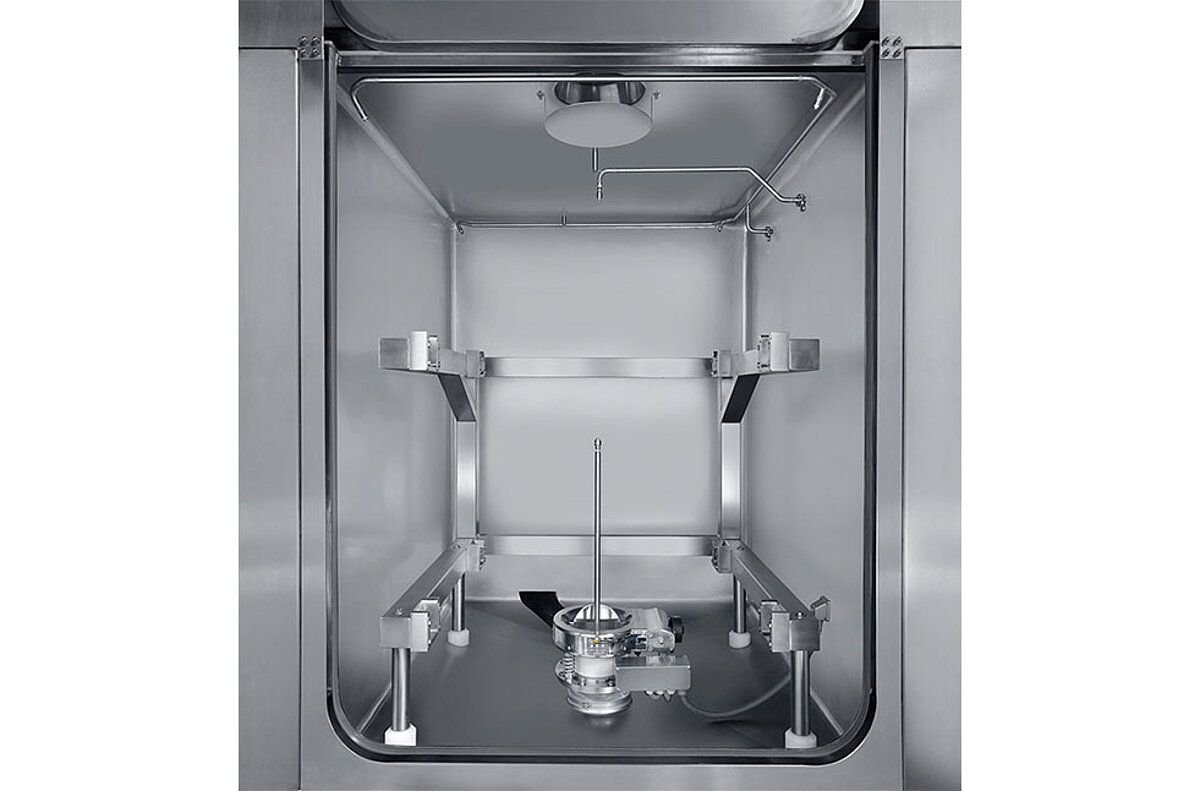

This cleaning chamber has a special design, because the needed opening mechanism are integrated into the cleaning process. As a rule, it’s not possible to trigger containment by dismantling the double valve halves in front of the wash chamber. Thus this step must take place within the enclosed chamber. Servolift has developed a cleaning chamber for this which meets these special requirements. The needed opening mechanisms for the double valve system are found within the wash chamber. Cleaning media and drying air are fed from the underside through the opened double valve of the interior of the container. Also this chamber can be produced, like the cleaning chamber, in various designs.

Efficient cleaning of high containment systems



  • Compact and user-friendly construction
  • Chamber with 1 or 2 doors design
  • Process unit under or alternatively next to the wash chamber in the equipment room
  • Automatic opening unit for passive valves in the area of the sink and/or in the head area of the chamber, depending upon the design of the containers to be cleaned
  • Adapter to clean drums with funnels and passive valves
  • Feeding and unloading manually using hand lift carts or alternatively with a fully automatic system
  • Exterior cleaning of the container using fixed spray nozzles
  • PLC or IPC control, including CFR 21 Part 11 as well as customer-specific designs.
  • Adapt the cleaning chamber to the double valve system if specified by the customer
